Size Range from DN25 to DN125
Pressure Setting Range: A: 0~10.3 bar D:5.2~19.3 bar
Suitable for R12, R22, R502, R134a, R404a, R507, R717 and other compatible refrigerants.
Temperature Range: -46°C to +120°C.

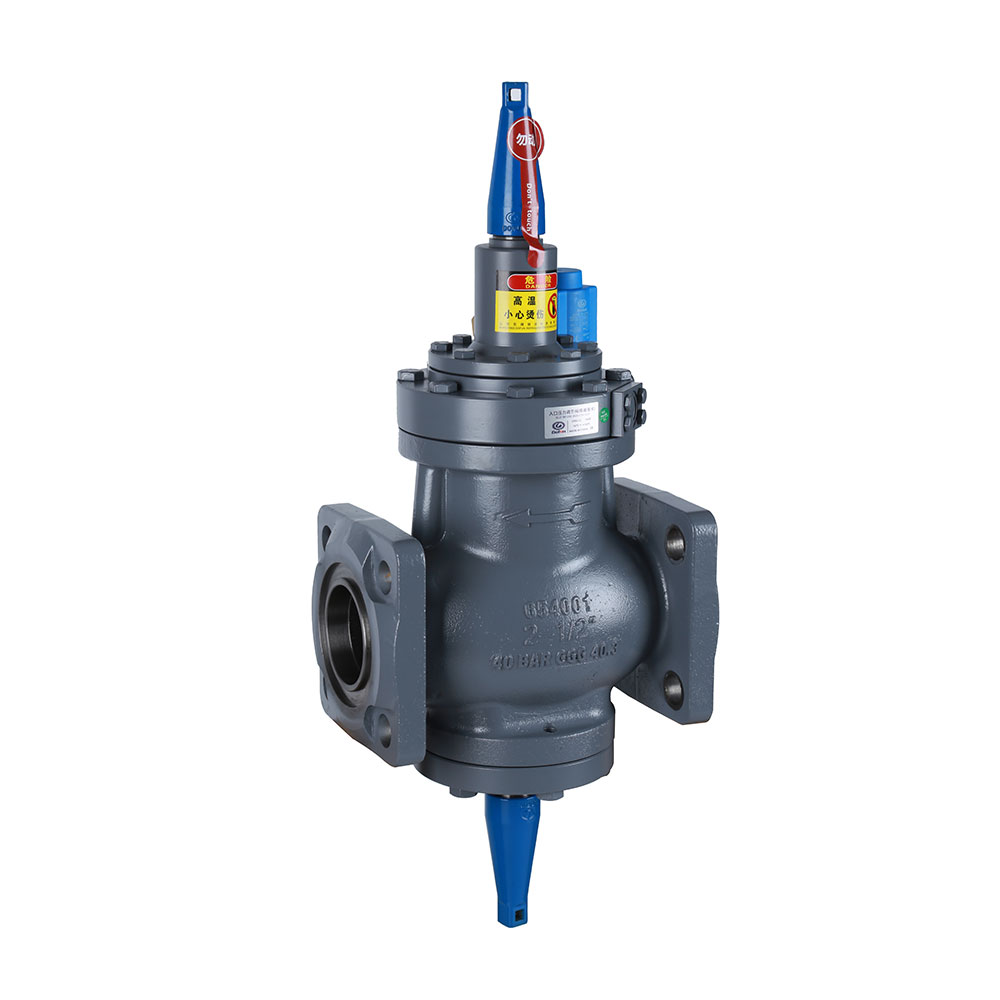

The IPRV-1C Inlet Pressure Regulating Valve (Solenoid Forced To Close) is the same as the IPRV inlet pressure regulating valve, which controls the inlet pressure and has a function of forced shut-off. It is adjusted when power is turned on and closed when power is turned off.
When power is on: the main valve opens when the inlet pressure exceeds the set pressure of the pilot valve, and the main valve closes when the pressure is lower than the set value; when the power is off, inlet of the pressure pilot valve closes and the main valve closes. Suitable for opening during temperature control and closing during defrosting.
